LS Industries STRB4824-L

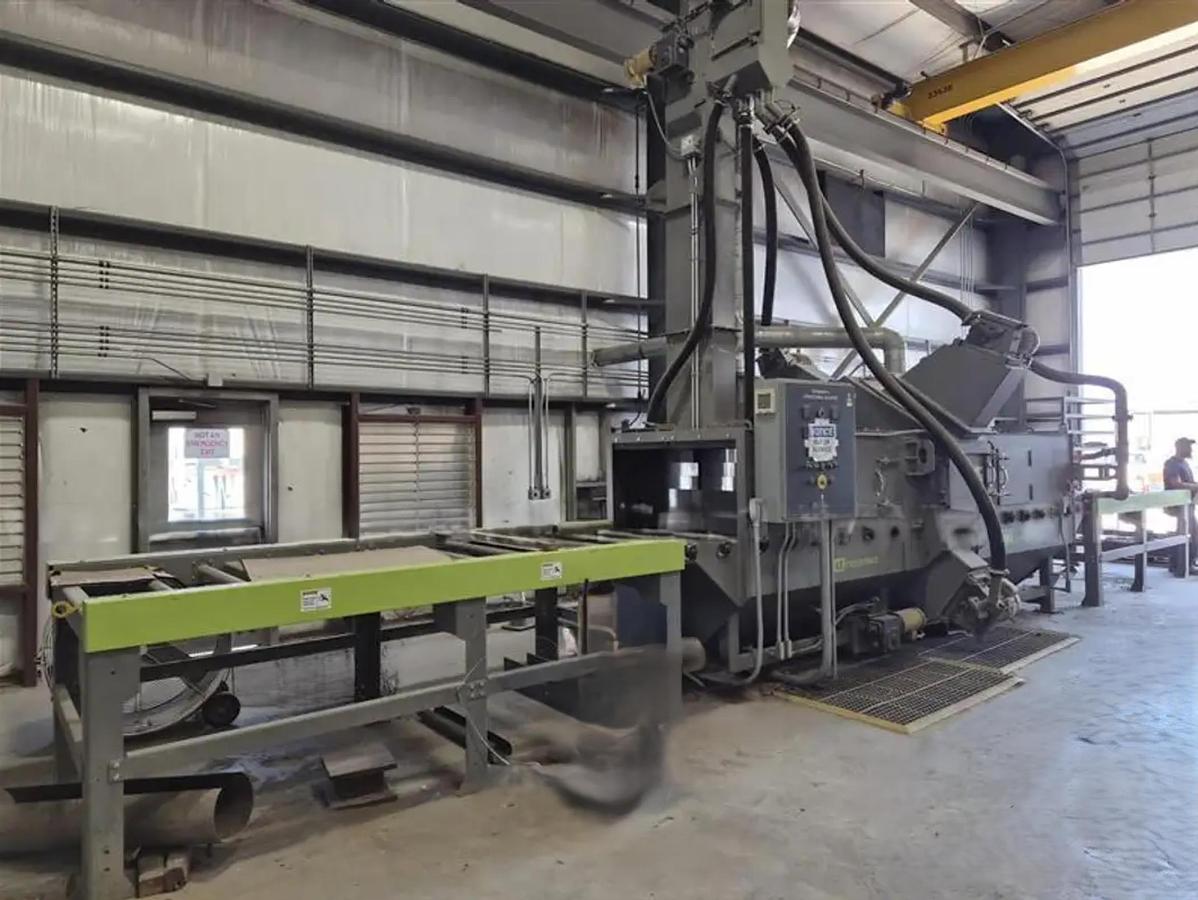

Only 9 operating hours. Heavy-duty airless steel shot blasting system with a complete conveyorized material handling system and an integrated abrasive recovery and recycling system. This unit is built for structural steel, fabricated steel, tubing, pipe, and weldments. It also has UL and CSA-registered electrical components.

Blast Cabinet

Opening Size

• 48" Wide × 24" High

Construction

• 1/4" (6.35 mm) 11–14% manganese steel alloy cabinet
• 1/4" manganese steel alloy replaceable wear plate liners
• Heavy-duty maintenance access door
• Inspection panels on augers and elevator
• Integrated lifting hooks for installation and relocation

Blast Wheel System

This machine is equipped with four LS SureShot® direct-drive center-fed blast wheels.

Configuration includes:

• Four (4) LS SureShot blast wheels
• Two upper blast wheels
• Two lower blast wheels

Each blast wheel features:

• 10 HP (7.5 kW) direct-drive motor
• Four chromium/molybdenum alloy blades
• Replaceable cast chrome liners
• Center-fed abrasive delivery for improved wheel performance

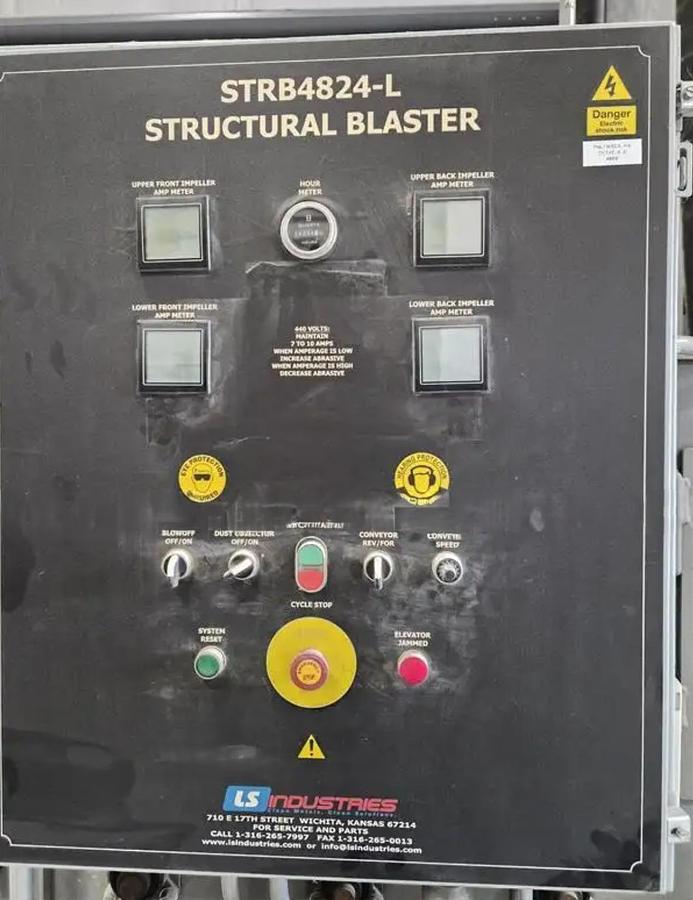

• Individual amp meter for monitoring abrasive load

Abrasive Recovery System

Complete abrasive recycling system includes:

• Collection hopper
• Auger system
• Bucket elevator
• Air wash separator
• Automatic parts sensor
• Automatic abrasive on/off control

Optional features installed include:

• Automatic abrasive adder
• Low-level abrasive probe
• Air-operated valve

Bucket Elevator

Heavy-duty bucket elevator construction includes:

• 10" × 20" × 1/4" mild steel housing
• 5 HP brake motor
• Cast iron buckets
• Multi-ply reinforced rubber belt
• Rubber-lagged drum pulley
• Idler drum pulley

Shot Containment System

Features include:

• 10-gauge mild steel vestibules
• Rubber containment curtains
• Lexan entrance and exit flaps
• V-tray abrasive return system

Auger System

Integrated abrasive return components include:

• Entrance auger
• 2 HP drive
• Exit return auger
• None
• Lower cross auger
• None
• Upper cross auger
• None

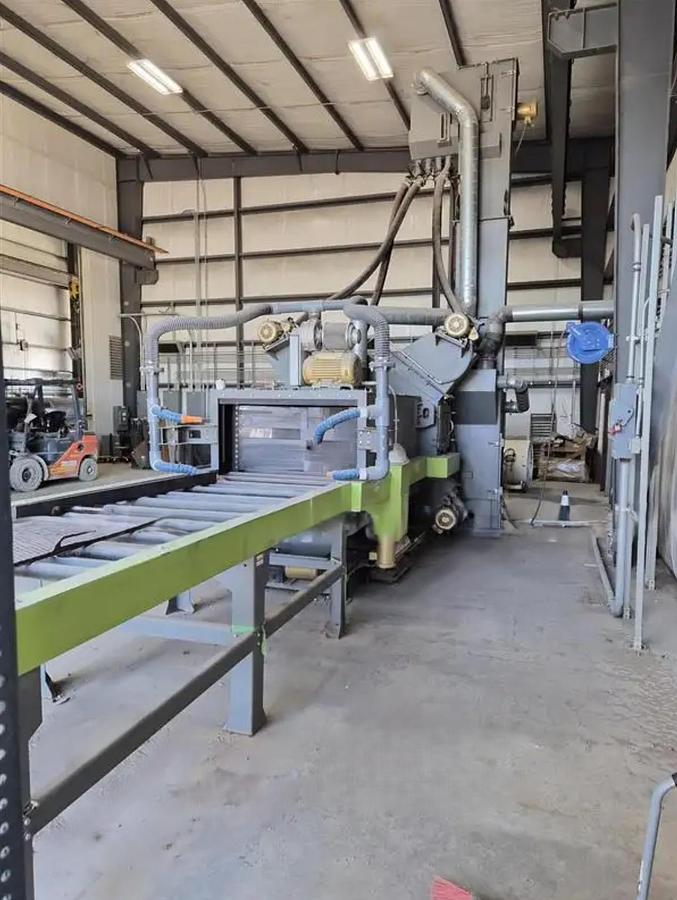

Conveyor System

Features include:

• Chain-driven live roller conveyor
• Rollers on 12-inch centers
• Variable-speed DC drive
• 0.5 HP conveyor motor

Optional equipment includes:

• Automatic conveyor on/off control

Sonic Blow-Off System

Optional high-pressure sonic blow-off package includes:

• 10 HP blower
• Air nozzles
• Ductwork
• Approximately 14 additional amp draw

Dust Collection

Model DC-5 Jet Fan Bag Dust Collector

• 800 CFM airflow
• Eight replaceable filter bags
• 208 square feet of filtration media

Included with the Machine

• Full load of steel shot abrasive
• Operation manual
• Spare parts list
• Complete electrical wiring diagrams
