Delong/Innovative Systems Thru-Feed Debur/Blast System

DELONG/INNOVATIVE SYSTEMS THRUFEED DEBURRING & BLAST CABINET PEENING & DEBURRING SYSTEM

BLAST CABINET JOB ORDER NUMBER 141-00-256,

THRUFEED DEBURRING CABINET JOB ORDER NUMBER 141-00-258

EQUIPPED WITH:

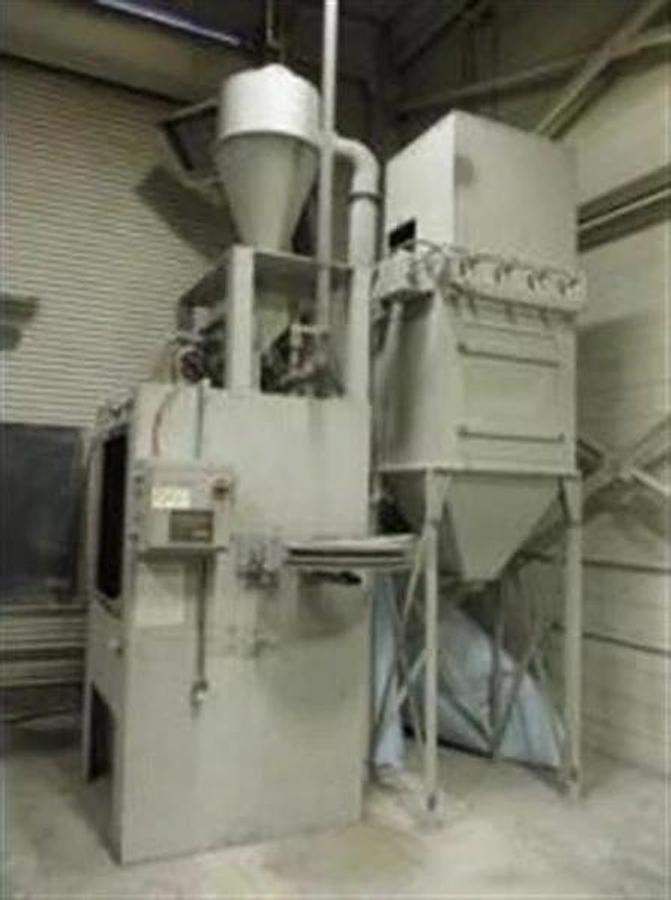

(1) DELONG/INNOVATIVE PEENING SYSTEMS BLAST CABINET

(1) DELONG/INNOVATIVE PEENING SYSTEM THRUFEED DEBBURRER

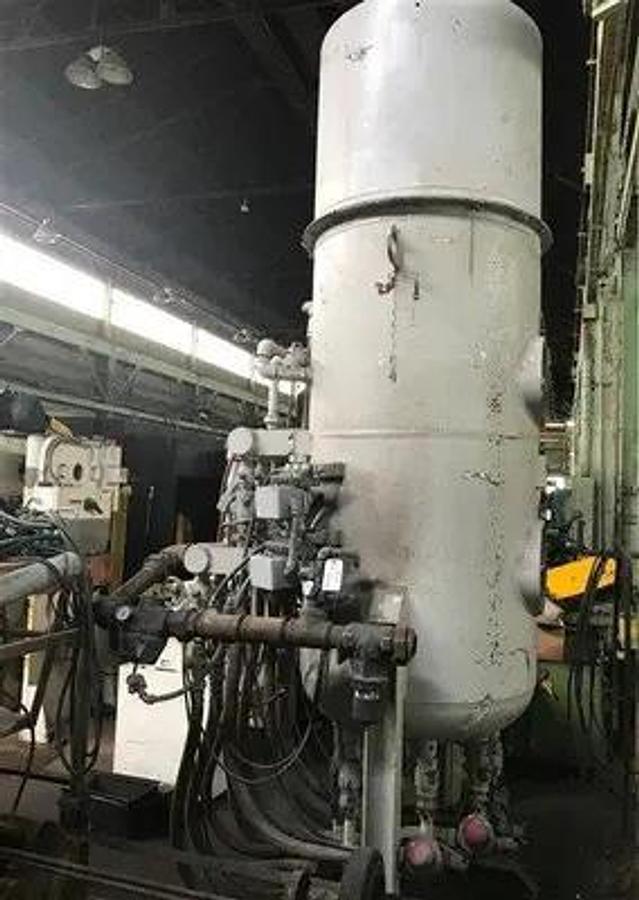

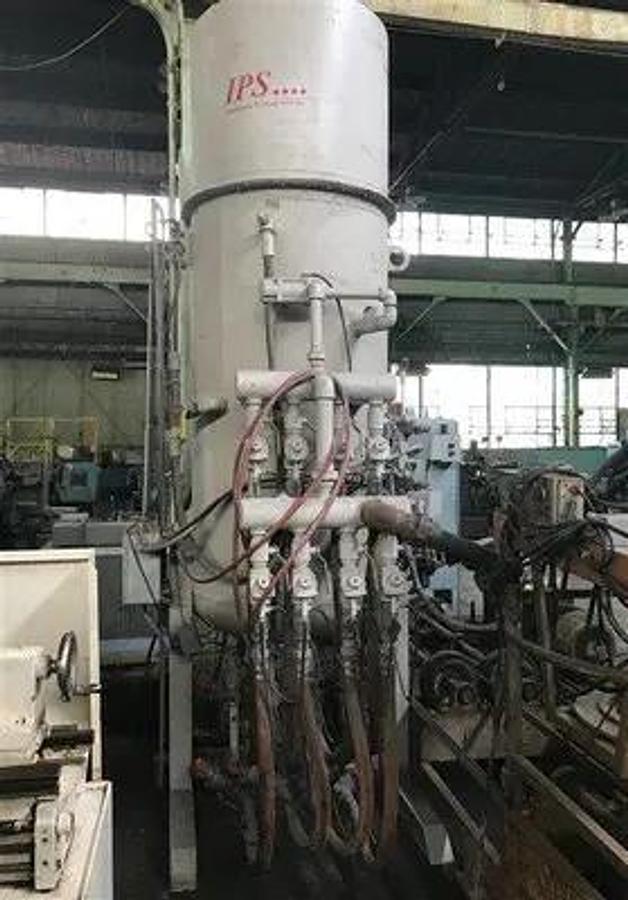

(1) DELONG/INNOVATIVE PEENING SYSTEMS BLAST TOWER

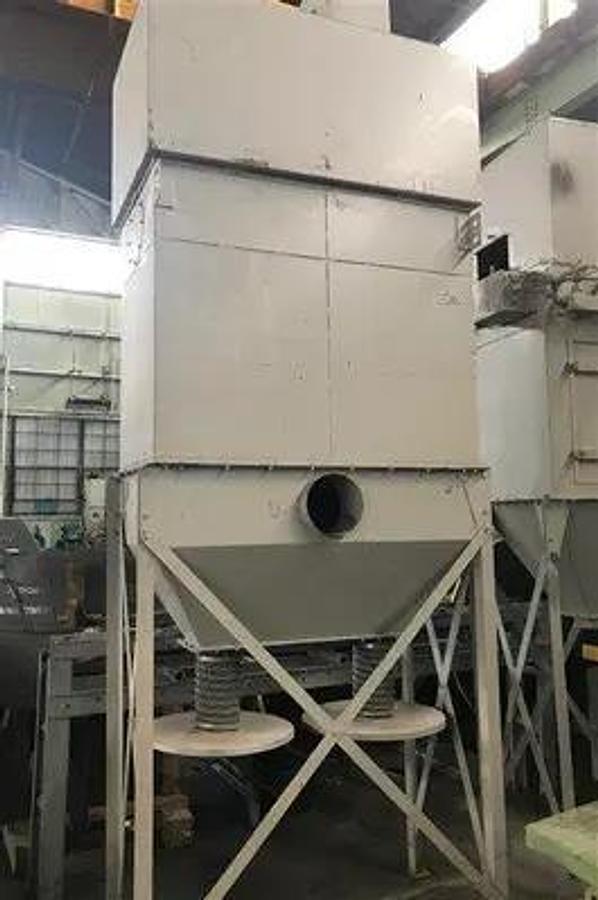

(2) HEAVY-DUTY DUST COLLECTORS

CABINET EQUIPPED WITH:

REMOVEABLE BRACKET TYPE WORK HOLDING FIXTURE

(4) NOZZLES (2) PNEUMATIC AIR PRESSURE GAUGESS

HEAVY-DUTY LEVER LOCKING TYPE DOOR

CABINET SPECIFICATIONS:

Work Area, L-R x F-B 48" x 46"

Work Area, Height 43"

Door Opening, W x H 32" x 34"

THRUFEED DEBURRER EQUIPPED WITH:

5" WIDE BELT W/V-BLOCK WORK HOLDING FIXTURES

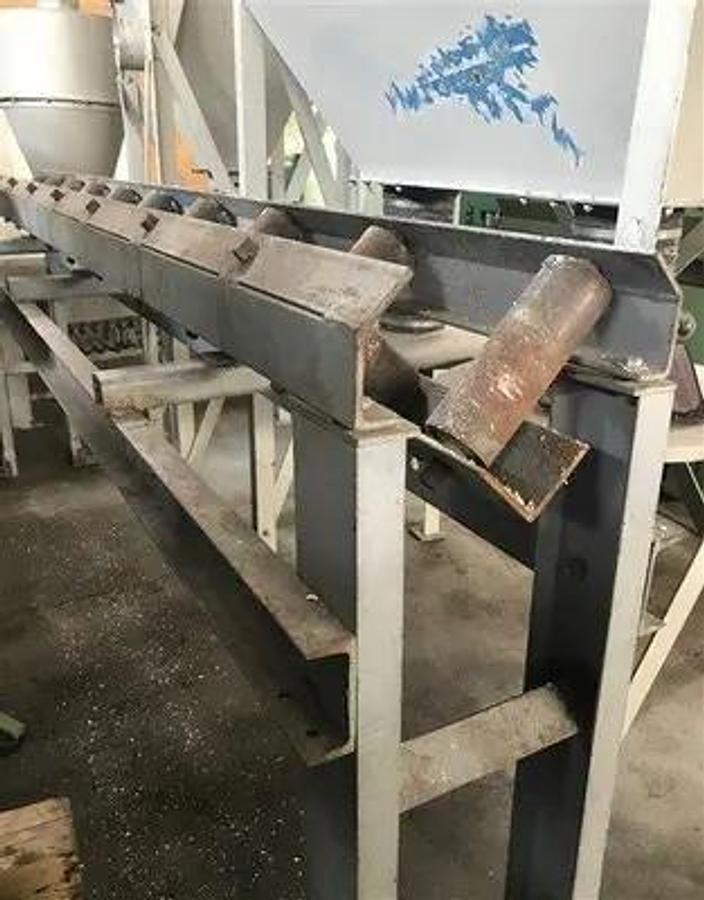

LARGE QUANTITY OF THRUFEED CONVEYOR

HUB CITY VARIABLE SPEED DRIVE TO CONVEYOR

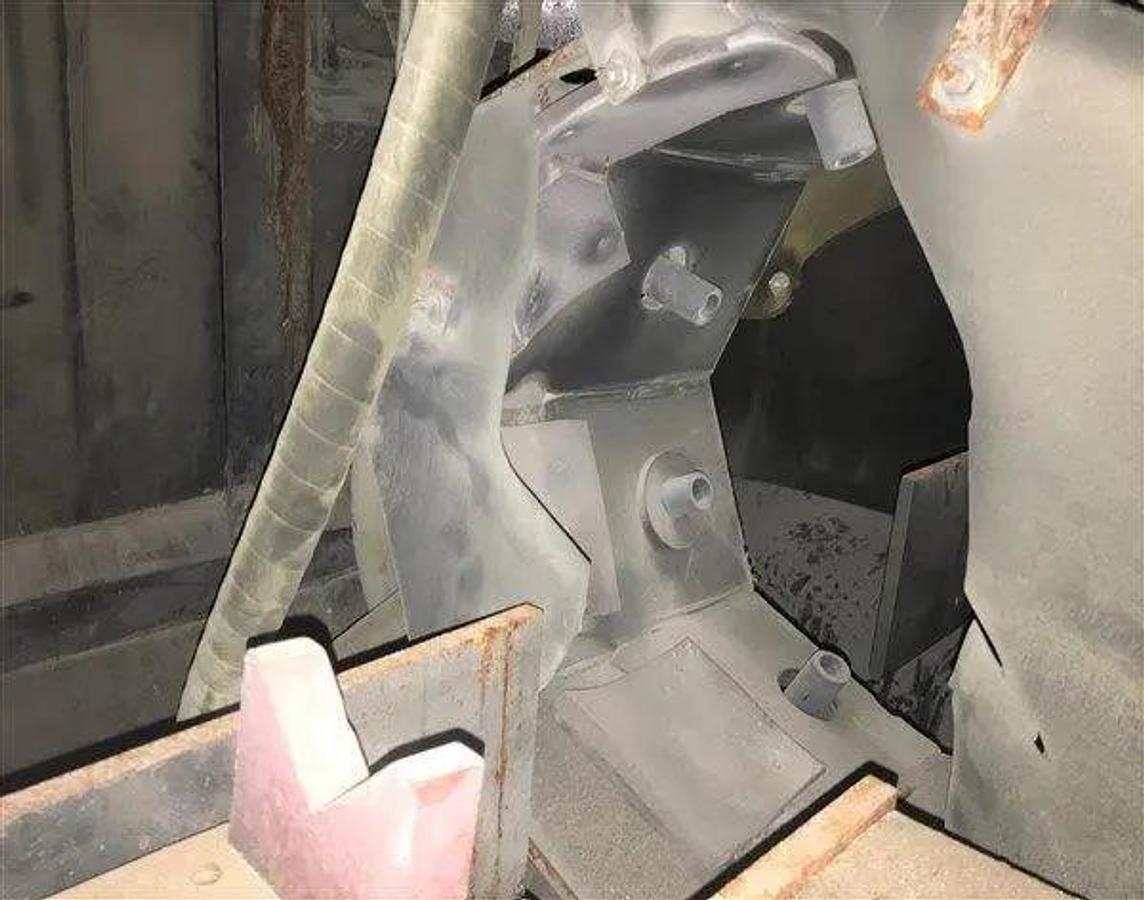

CIRCULAR DEBURRING CYLINDER W/8 BLASTING NOZZLES

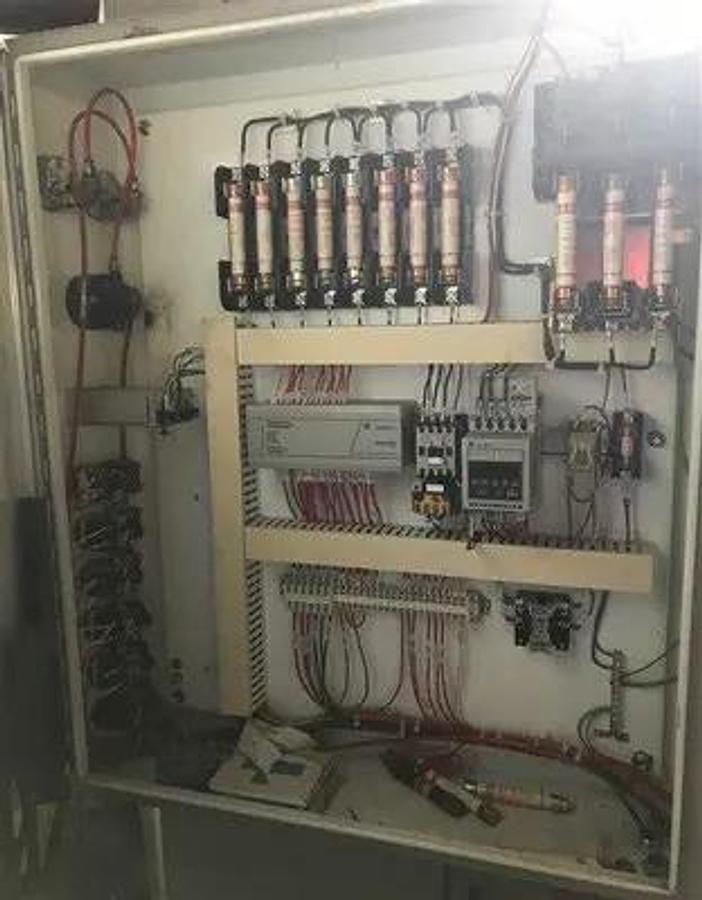

MANUAL - AUTOMATIC & VARIABLE SPEED CONTROLS

CABINET DIMENSIONS, W X D X H 84" X 60" X 84"
